Test WP2 class

Define a BarSet bar configuration and use it with WP2 to compute elastic wave propagation in simple test cases.

import numpy as np
import matplotlib.pyplot as plt
from elwaspatid import WP2, BarSet

Define a few parameters

E = 201e9  # Young modulus [Pa]
rho = 7800  # Density [kg/m3]
d = 0.020  # diameter [m]
k = 2.4  # diameters ratio [-]

Create the bar configurations: two bars in contact.

nm = 15
bc = BarSet([E, E], [rho, rho], [.1, .13], [d, d], nmin=nm)  # same section
bc2 = BarSet([E, E], [rho, rho], [.1, .13], [d, k*d], nmin=nm)  # section increase
bc3 = BarSet([E, E], [rho, rho], [.1, .13], [k*d, d], nmin=nm)  # section reduction
bc4 = BarSet([E, E], [rho, rho], [.1, .3], [d, d], nmin=nm)  # same section

Define the incident wave vector

comp = np.zeros(20)  # incident wave
#comp[0:20] = -1e3  # heavyside, compression (<0)
comp[0:7] = -2e3
comp[15:] = -1e3

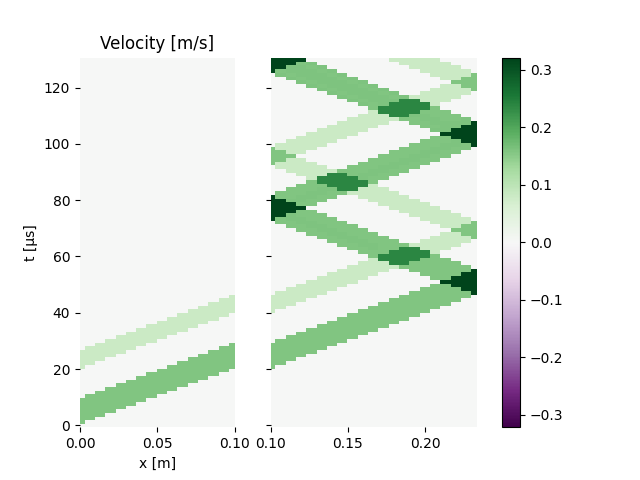

Two identical bars, free-ends

Contact interface between the two bars:

1. compression pulses cross the interface,

2. are reflected as traction pulses on the free end (right),

3. and traction is then reflected as compression on the contact interface, as if this was a free end.

And so on. Which means the pulse is trapped in the second bar.

test2 = WP2(bc, comp, nstep=100, left='free', right='free')
test2.plot('2b_free')

•
•
•

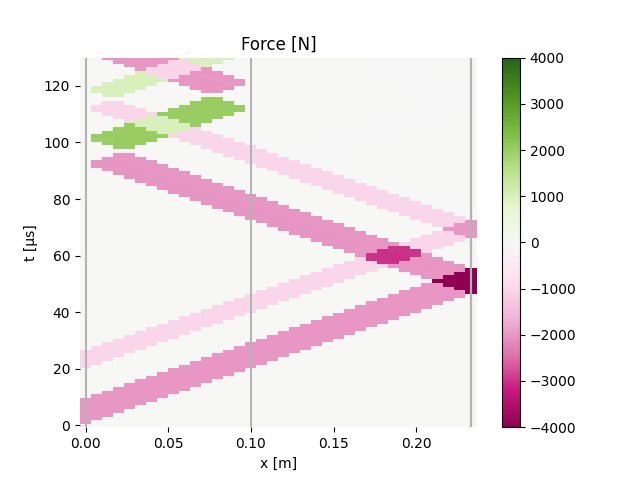

Two identical bars, free and fixed ends

test2 = WP2(bc, comp, nstep=100, left='free', right='fixed')
test2.plot('2b_freefixed')

•
•
•

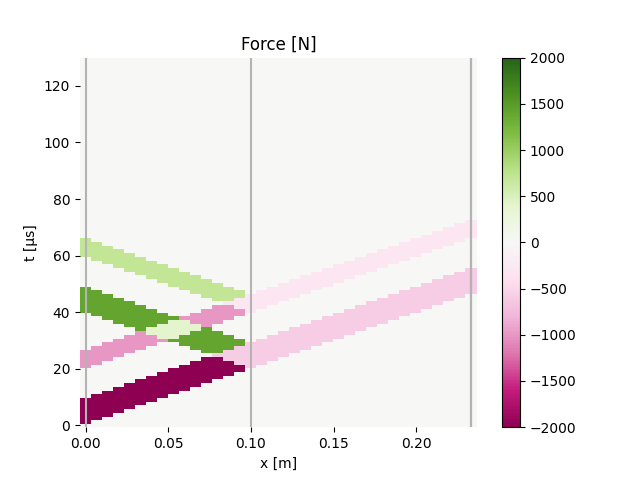

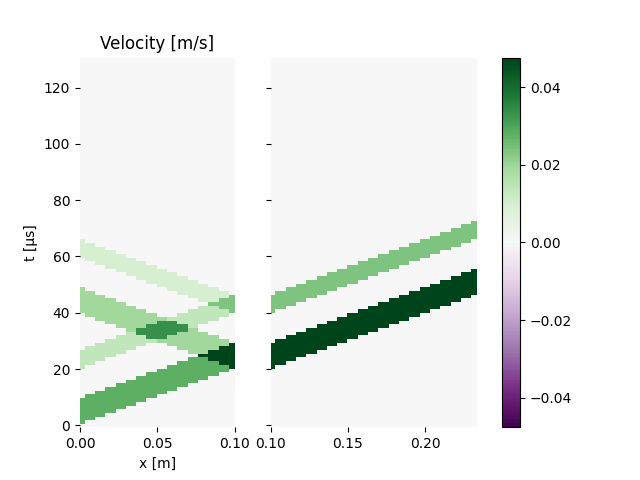

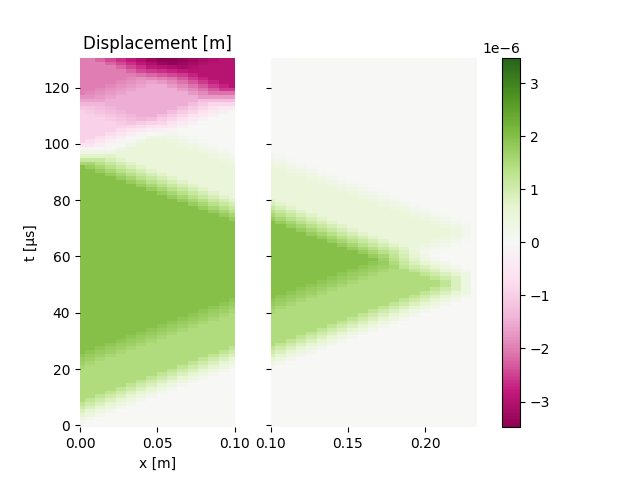

Two different bars, infinite-ends

Compression pulses cross the interface and are partly reflected because of the difference of impedance between the bars. At both end, no reflection occur since infinite ends amounts to anechoic condition.

test2f = WP2(bc3, comp, nstep=100, left='infinite', right='infinite')
test2f.plot('2b_anech')

•
•
•

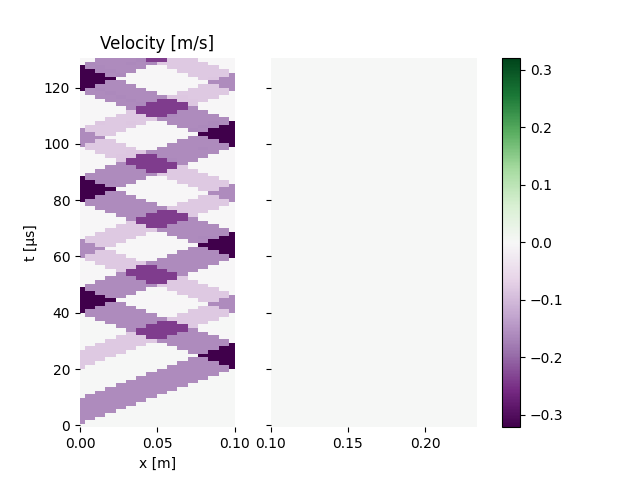

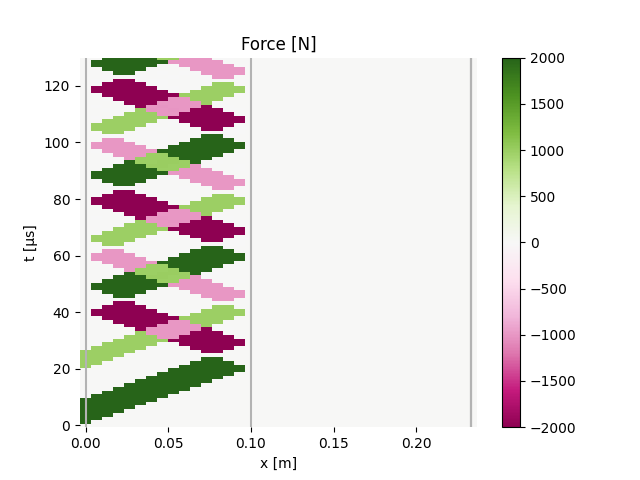

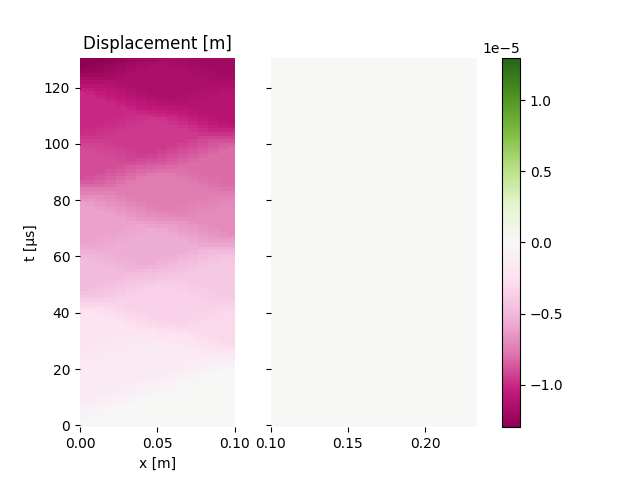

Two identical bars with traction pulse

The traction pulses do not cross the contact interface. The pulse is trapped in the firt bar.

test2t = WP2(bc, -comp, nstep=100, left='free', right='free')
test2t.plot('2b_trac')

•
•
•

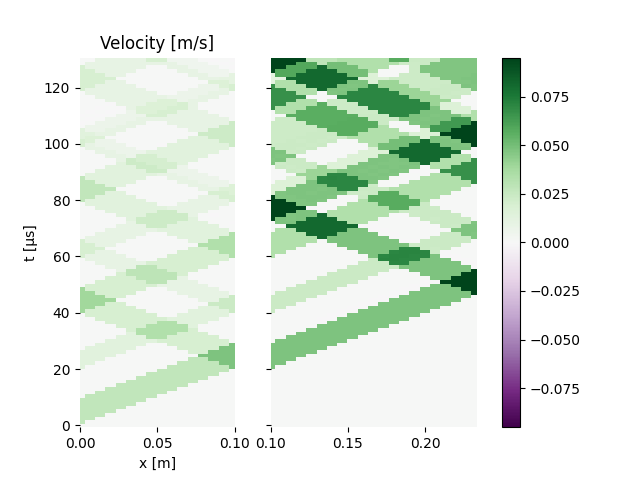

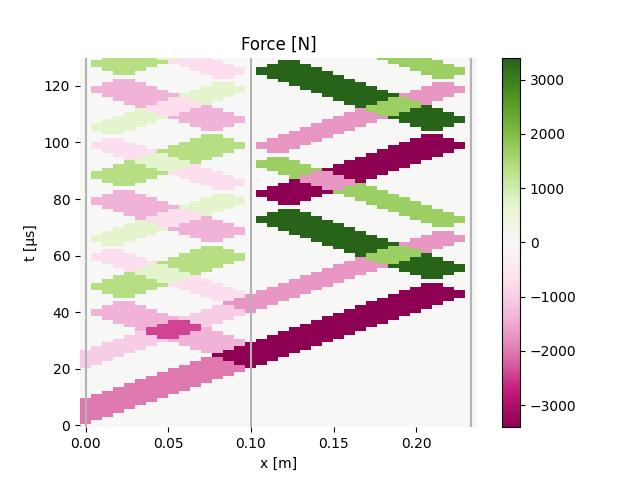

Two bars, cross-section increase

Compression is reflected as traction. Recall that the limit case of cross-section increase is the fixed end.

test2a = WP2(bc2, comp, nstep=100, left='free', right='free')
test2a.plot('2b_incre')
# test2av = WP2(bc2, comp, nstep=100, left='free', right='free', Vinit=10)
# test2av.plot('2baugmv')

•
•
•

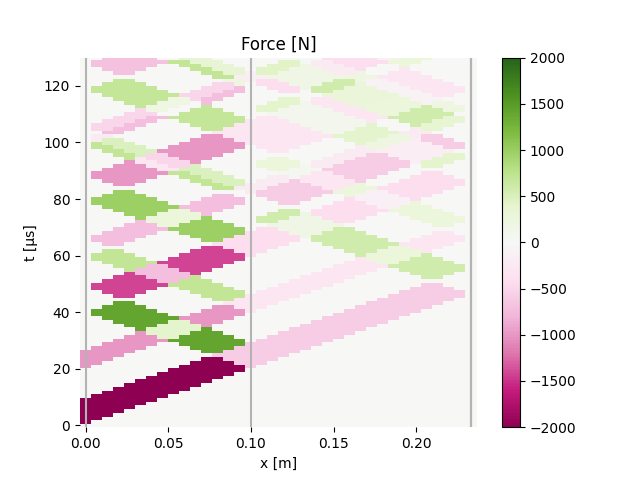

Two bars, cross-section reduction

Compression is reflected as compression Recall that the limit case of cross-section reduction is the free end.

test2d = WP2(bc3, comp, nstep=100, left='free', right='free')
test2d.plot('2b_reduc')
# test2dv = WP2(bc3, comp, nstep=100, left='free', right='free', Vinit=10)
# test2dv.plot('2bdimiv')
test2d.plotInterface(figname='interf')

•
•
•
•

Out:

/home/docs/checkouts/readthedocs.org/user_builds/elwaspatid/checkouts/latest/src/elwaspatid/elwaspatid.py:395: MatplotlibDeprecationWarning: Adding an axes using the same arguments as a previous axes currently reuses the earlier instance.  In a future version, a new instance will always be created and returned.  Meanwhile, this warning can be suppressed, and the future behavior ensured, by passing a unique label to each axes instance.
  ax1 = plt.subplot(nsbp, 1, 1)
/home/docs/checkouts/readthedocs.org/user_builds/elwaspatid/checkouts/latest/src/elwaspatid/elwaspatid.py:402: MatplotlibDeprecationWarning: Adding an axes using the same arguments as a previous axes currently reuses the earlier instance.  In a future version, a new instance will always be created and returned.  Meanwhile, this warning can be suppressed, and the future behavior ensured, by passing a unique label to each axes instance.
  plt.subplot(nsbp, 1, 2, sharex=ax1)
/home/docs/checkouts/readthedocs.org/user_builds/elwaspatid/checkouts/latest/src/elwaspatid/elwaspatid.py:409: MatplotlibDeprecationWarning: Adding an axes using the same arguments as a previous axes currently reuses the earlier instance.  In a future version, a new instance will always be created and returned.  Meanwhile, this warning can be suppressed, and the future behavior ensured, by passing a unique label to each axes instance.
  plt.subplot(nsbp, 1, 3, sharex=ax1)

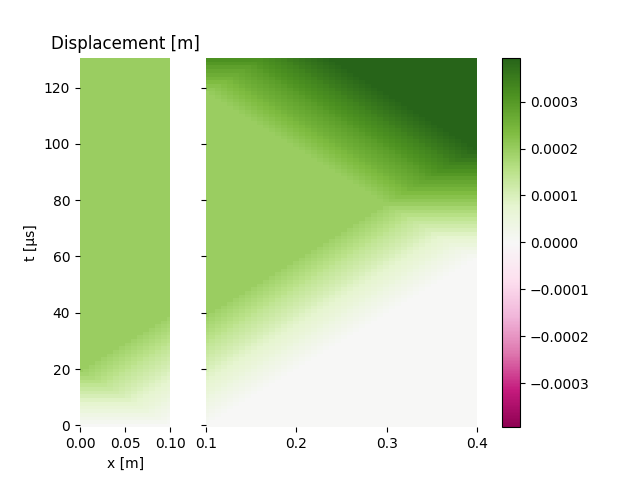

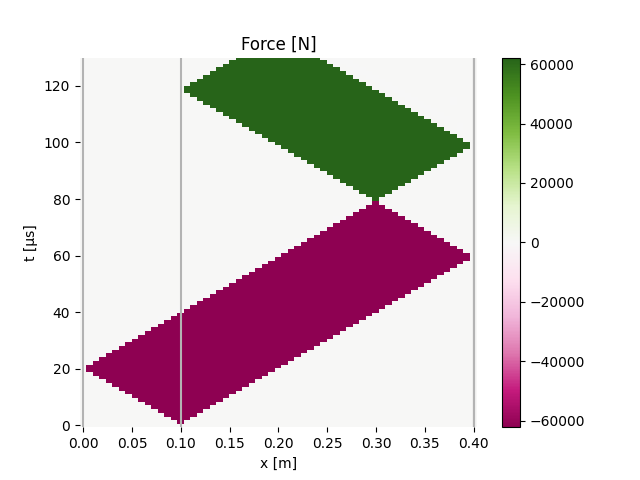

First bar with initial velocity

Positive velocity: compression

As the first bar (=stricker) impacts the second bar, a compression pulse develops in both bars. The stricker being shorter that the second bar, the compression pulse reaches the left end of the stricker and is reflected as traction with the same magnitude as the compression pulse: traction cancels compression and the force is null (traction can be considered as an unloading wave).

test2v = WP2(bc4, comp, nstep=100, left='free', right='free', Vinit=10)
test2v.plot('2b_veloc')

•
•
•

Out:

Setting initial velocity of first segment (Vo=10)

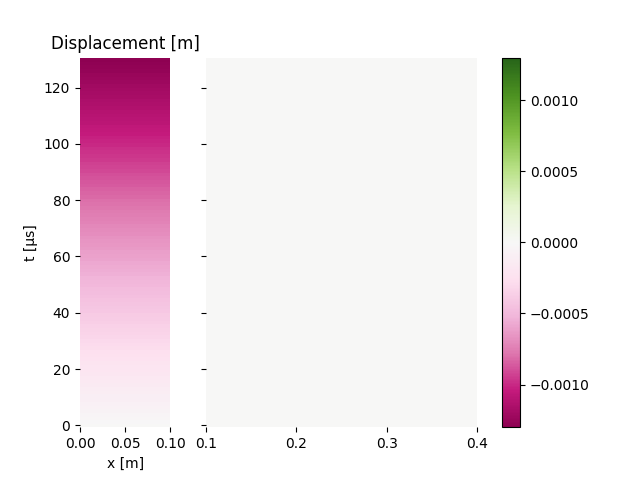

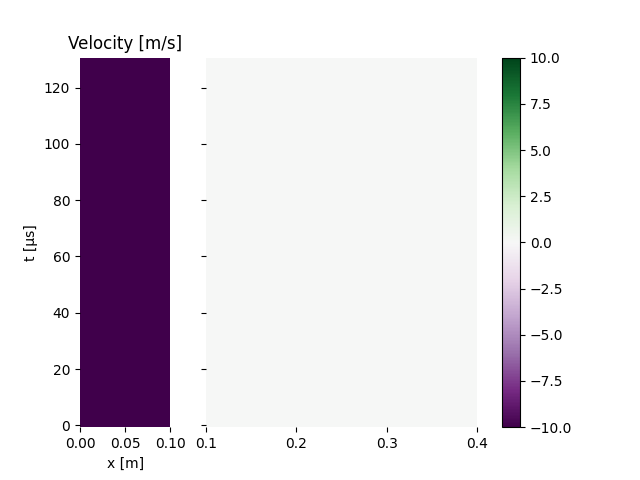

Negative velocity

Nothing happens, the left bar travels to the left.

test2vn = WP2(bc4, comp, nstep=100, left='free', right='free', Vinit=-10)
test2vn.plot('2b_negveloc')

plt.show()

•
•
•

Out:

Setting initial velocity of first segment (Vo=-10)
