Compare ElasticImpact
and WP2
In the case of the impact of an elastic striker on a bar, compare the analytical
result given by ElasticImpact
and the numerical result computed with
WP2
.
import numpy as np
import matplotlib.pyplot as plt
from elwaspatid import WP2, BarSet, ElasticImpact
Define material parameters
E = 201e9 # Young modulus [Pa]
rho = 7800 # Density [kg/m3]
d1 = 0.02 # bar/stricker diameter [m]
d2 = 0.03 # bar/stricker diameter [m]
L = 1. # length of the striker [m]
Vo = 5. # intial striker velocity [m/s]
Analytical result with ElasticImpact
Three possible cases:
striker and bar have the same diameter
striker smaller than bar
striker larger than bar
time = np.linspace(-10e-6, 10e-3, num=1000)
EI = ElasticImpact(E, rho, d1, L, Vo)
EI.computeImpact(time) # time array must be given to the method

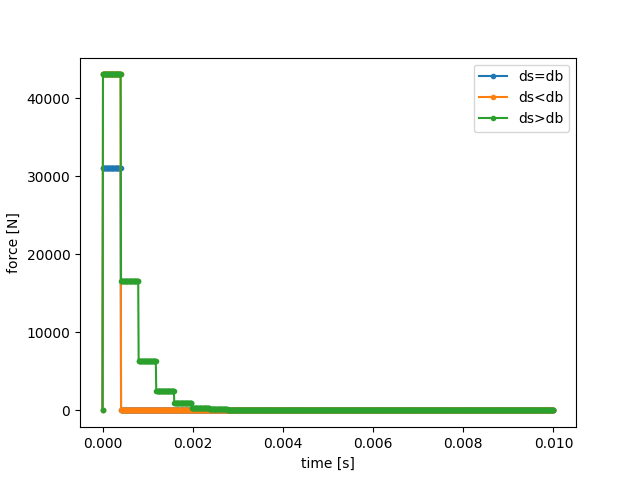

EI.plotForce('compare', label='ds=db')
EJ = ElasticImpact(E, rho, d=[d1, d2])
EJ.computeImpact(time)
EJ.plotForce('compare', label='ds<db')
EK = ElasticImpact(E, rho, d=[d2, d1])
EK.computeImpact(time)
EK.plotForce('compare', label='ds>db')
_ = plt.legend()

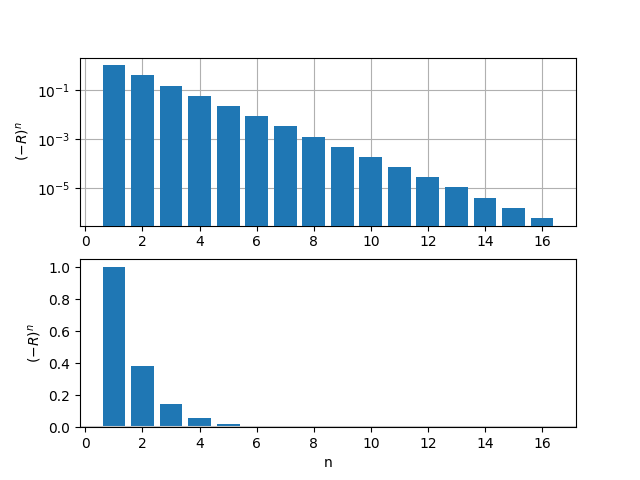

EK.plotRn() # plot amplitude of successive steps
Out:
comment calculer l'eq. 35 pour un choc viscoelastique??
comment calculer l'eq. 35 pour un choc viscoelastique??
comment calculer l'eq. 35 pour un choc viscoelastique??
Numerical result with WP2
Bar configuration: one striker and one bar at rest
striker = BarSet([E, E], [rho, rho], [L, .2], [d2, d1], nmin=6)
testk = WP2(striker, nstep=400, left='free', right='infinite', Vinit=Vo)

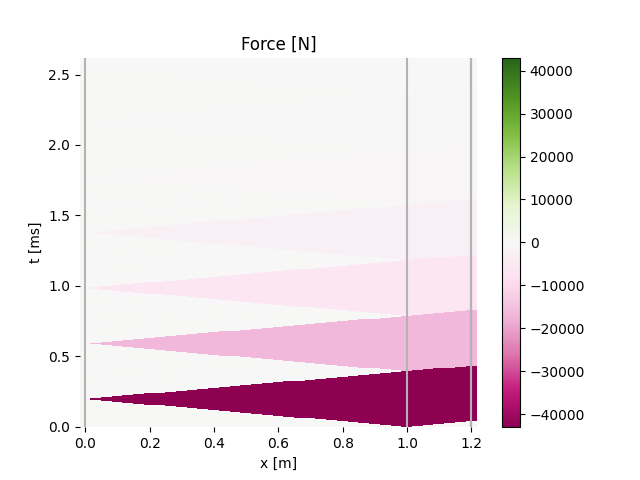

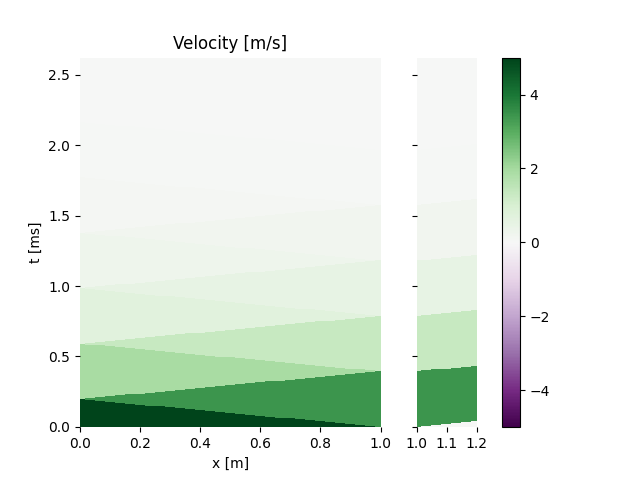

testk.plot('striker')
Out:
Setting initial velocity of first segment (Vo=5)
Get force at at impacted side of the bar
f1, v1, x1, ind1 = testk.getSignal(x=0, iseg=1, plot=True)
Compare analytical and numerical solutions
plt.figure()
plt.plot(testk.time, f1, '-', label='num')
plt.plot(time, -EK.force, '--', label='ana')
plt.legend()
plt.xlim(xmax=2.7e-3)
plt.show()
Total running time of the script: ( 0 minutes 1.910 seconds)
