Use Waveprop
to simulate SHPB test
Simulate a test with Split Hopkinson Pressure Bars, assuming the sample has purely elastic behaviour.
import matplotlib.pyplot as plt
from elwaspatid import WP2, BarSet
Define material parameters.
E = 201e9 # Young modulus [Pa]
rho = 7800 # Density [kg/m3]
SHPB bar configuration
b_kolsky = BarSet([E, E, 0.8*E, E], [rho, rho, rho, rho], [.6, 3, .05, 3.1],
[0.028, 0.030, 0.025, 0.030], nmin=4)
testk = WP2(b_kolsky, nstep=400, left='free', right='free', Vinit=5)

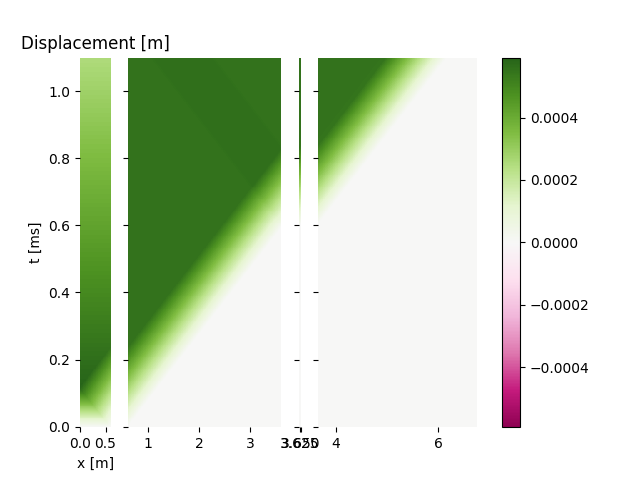

testk.plot('shpb')
Out:
Setting initial velocity of first segment (Vo=5)
Get force at both ends of sample (segment index iseg=2
)
f1, v1, x1, ind1 = testk.getSignal(x=0, iseg=2, plot=False)
f2, v2, x2, ind2 = testk.getSignal(x=0.05, iseg=2, plot=False)
Plot forces in the sample to see the buildup of equilibrium in the sample.
plt.figure('Fsample')
plt.plot(testk.time*1e6, -f1/1000, '-', label='left')
plt.plot(testk.time*1e6, -f2/1000, '-', label='right')
plt.xlabel('time [µs]')
plt.ylabel('force [kN]')
plt.legend()
plt.show()
Total running time of the script: ( 0 minutes 1.235 seconds)
